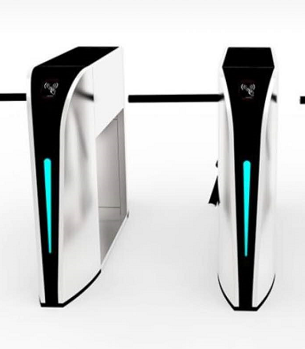

AX-Y002 Optical Swing Barrier Gate for Controlled Pedestrian Access

Key Specifications

Features & Benefits

304 stainless steel housing with defined panel gauges. The AX-Y002 uses 304 stainless steel for the housing, with a 1.5 mm top panel and 1.2 mm side panels. For procurement teams, specifying panel thickness matters because it directly affects how the barrier resists deformation in high-contact entrances such as school corridors, office lobbies, and staff gates. The material choice also keeps the surface cleanable and suitable for environments where hygiene and appearance are both reviewed.

Fast 0.7-second gate action. The swing arm completes its open or close cycle in 0.7 seconds. In practice, this means an authorized person does not have to pause and wait for the barrier to clear before walking through. For sites with shift changes or class transitions, the fast cycle time helps prevent the small queues that form when a gate reacts slowly.

Throughput of 35 persons per minute (nominal). The AX-Y002 lists a nominal throughput of 35 persons per minute. This figure gives facility planners a concrete number to work with when sizing a lane for a lobby, a staff entrance, or a ticket-controlled gate. Where a single lane is expected to handle moderate traffic rather than continuous peak flow, this throughput supports smooth movement without over-specifying a multi-lane installation.

600 mm passage and 600 mm swing arm. The passage width is ≤ 600 mm, and the swing arm itself is 600 mm long. This combination defines the physical envelope the barrier occupies and the clear space it provides for one person passing at a time. It is a common configuration for pedestrian lanes where the goal is single-person authorization rather than wide-access passage.

Operating range from −25 °C to +70 °C. The stated operating temperature range is −25 °C to +70 °C, with humidity up to 90%. That range allows the unit to be considered for entrances that are not fully climate-controlled, including walkways at schools, parks, and office campuses, provided the site conditions fall within the published temperature and humidity limits.

10-year service life for non-wearing parts (as stated by the company). The company rates the non-wearing parts of the AX-Y002 at a 10-year service life. For a procurement buyer building a total-cost-of-ownership comparison, this is a useful reference point for the structural and fixed elements of the barrier, separate from consumable or moving components.

1-year warranty. The AX-Y002 carries a 1-year warranty. Warranty terms should be confirmed in the final quotation and purchase agreement so that the coverage period, scope, and claim process are documented for the project file.

Manufacturer capacity and OEM/ODM support. Shenzhen Anxia Technology Co., Ltd. states a monthly production capacity of 500 sets (as stated by the company). The company ships from Shenzhen port (as stated by the company) and packs units in wooden crates (as stated by the company). The company also supports OEM/ODM projects with in-house R&D, which is relevant for buyers who need branding, configuration adjustments, or integration work handled at the factory level rather than through a third party.

Certification status. The company describes itself as holding ISO 9001 quality-management-system certification with CE-marked products, as stated by the company, with certificates available upon request. Buyers with compliance requirements should request the relevant documents during the RFQ stage and verify that the certificates match the specific model and scope of supply.

Applications

The AX-Y002 is typically deployed where a single controlled pedestrian lane is needed at a defined entry or exit point. Common application environments include:

• Offices — lobby entrances, staff-only doors, and reception-adjacent lanes where visitor and employee access must be separated.
• Schools — campus gates, building entrances, and areas where student movement needs to be counted or controlled during peak transition periods.
• Parks — pedestrian entry points, staff access gates, and ticketed or restricted areas within larger grounds.
• Airports — staff corridors and restricted-access doors where authorized personnel pass through in a controlled sequence.

In each of these settings, the barrier functions as a physical and optical checkpoint: the swing arm presents a clear visual boundary, and the 0.7-second action keeps authorized passage quick. Because the unit operates from AC 198–248 V, 50 Hz, electrical planning should confirm that the site supply falls within this range before installation. Sites with extreme ambient conditions outside −25 °C to +70 °C or humidity above 90% fall outside the published operating envelope and should be assessed separately.

For projects combining multiple lanes, the AX-Y002 can be specified as a repeated module, with lane count driven by the expected persons-per-minute demand. A facility expecting traffic near the nominal 35 persons/min figure per lane should plan lane quantity accordingly rather than assuming a single unit will absorb surge volumes.

FAQ

What is the passage width of the AX-Y002 swing barrier gate?

The passage width is ≤ 600 mm, and the swing arm length is 600 mm. This defines a single-person passage lane.

How fast does the gate open and close?

The gate open/close time is 0.7 seconds. The nominal throughput is 35 persons per minute.

What are the power and environmental requirements?

The AX-Y002 runs on AC 198–248 V, 50 Hz. Its operating temperature range is −25 °C to +70 °C, and operating humidity is ≤ 90%.

What is the warranty and service life?

The unit carries a 1-year warranty. Non-wearing parts are rated by the company for a 10-year service life (as stated by the company).

Get Pricing for This Gate Model

To receive a quotation for the AX-Y002 swing barrier gate, submit your required quantity, target lead time, and any OEM or ODM requirements to Shenzhen Anxia Technology Co., Ltd. Include your destination port or delivery location so shipping from Shenzhen can be quoted accurately, and note any site conditions relevant to the published operating range. Get Pricing for This Gate Model by contacting the manufacturer with your project details — email [email protected].
